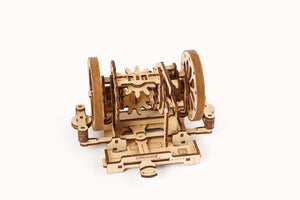

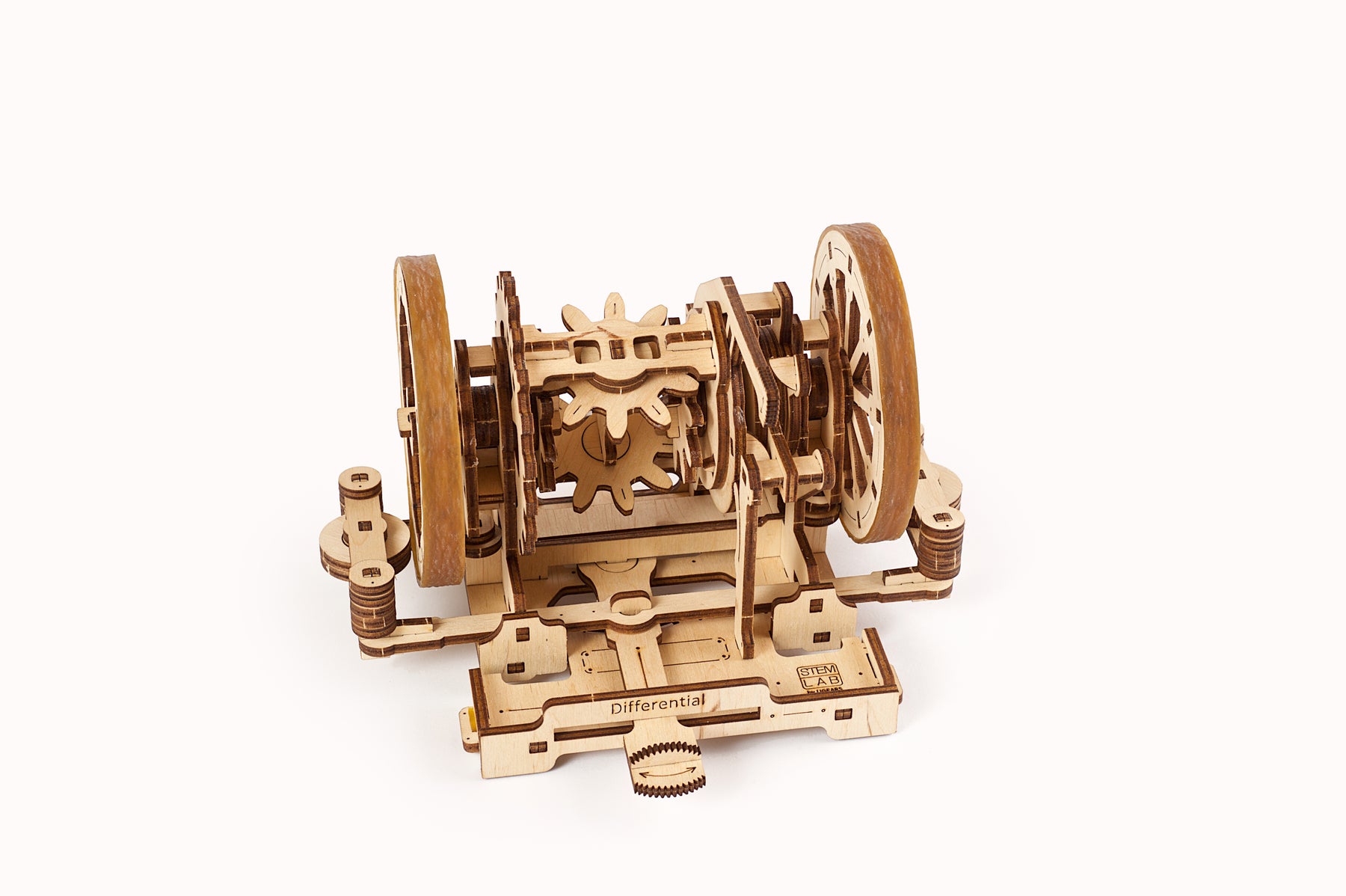

DIFFERENTIAL (MINT LAB)

Item no .: 70132

Number of components: 163

Setup time: 2 hours

Model size: 17.5 x 13.5 x 10.5 cm

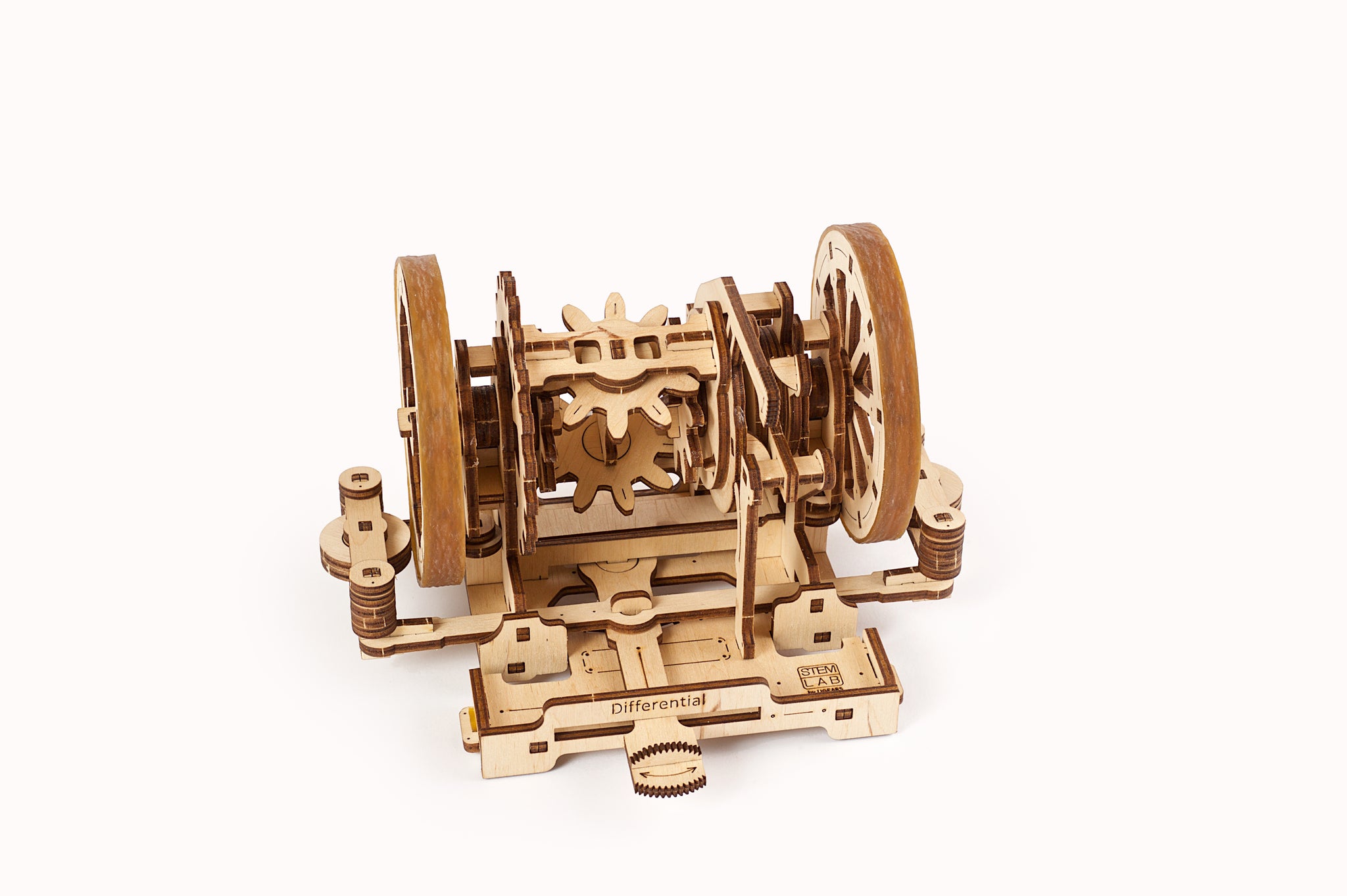

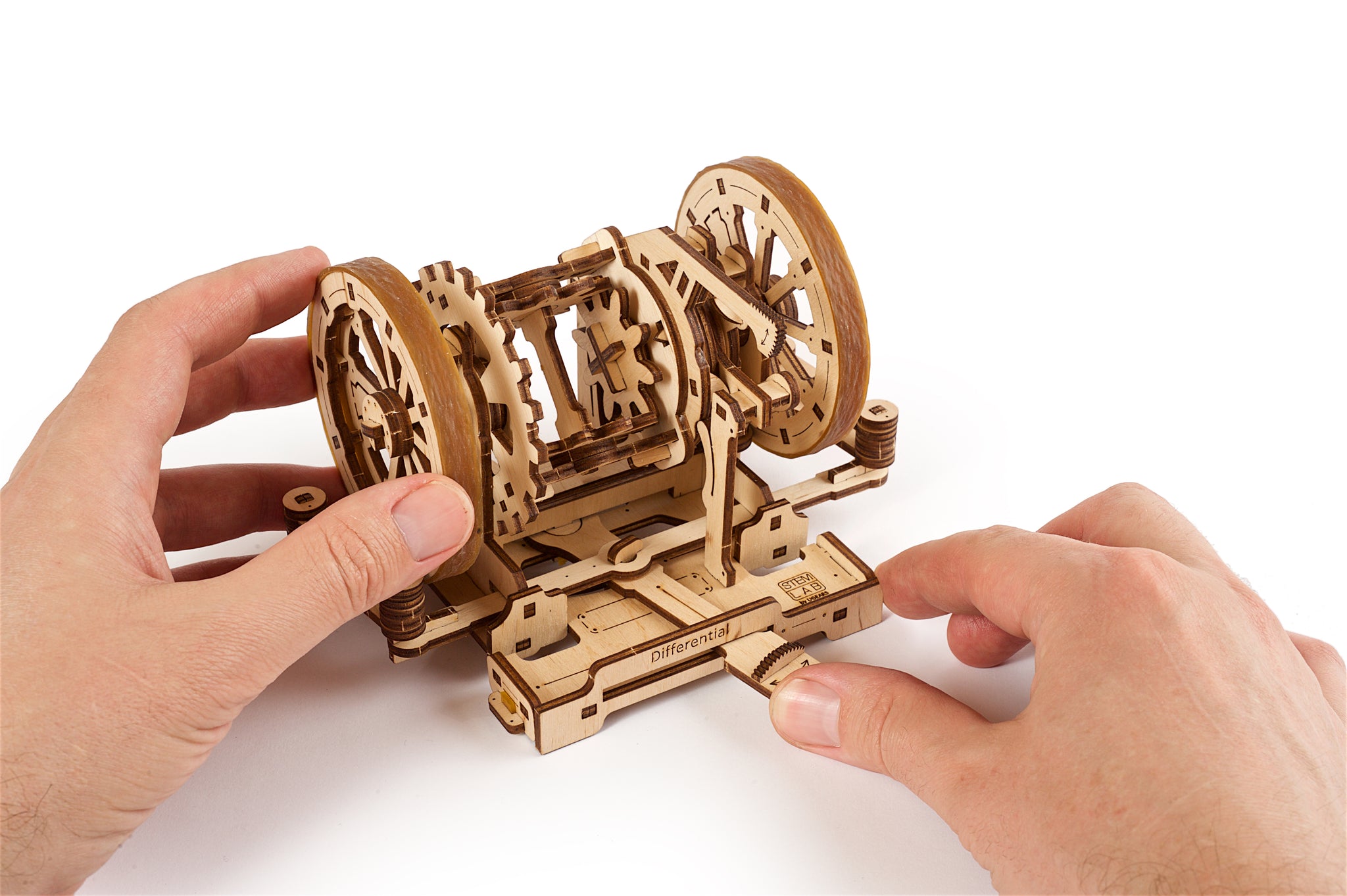

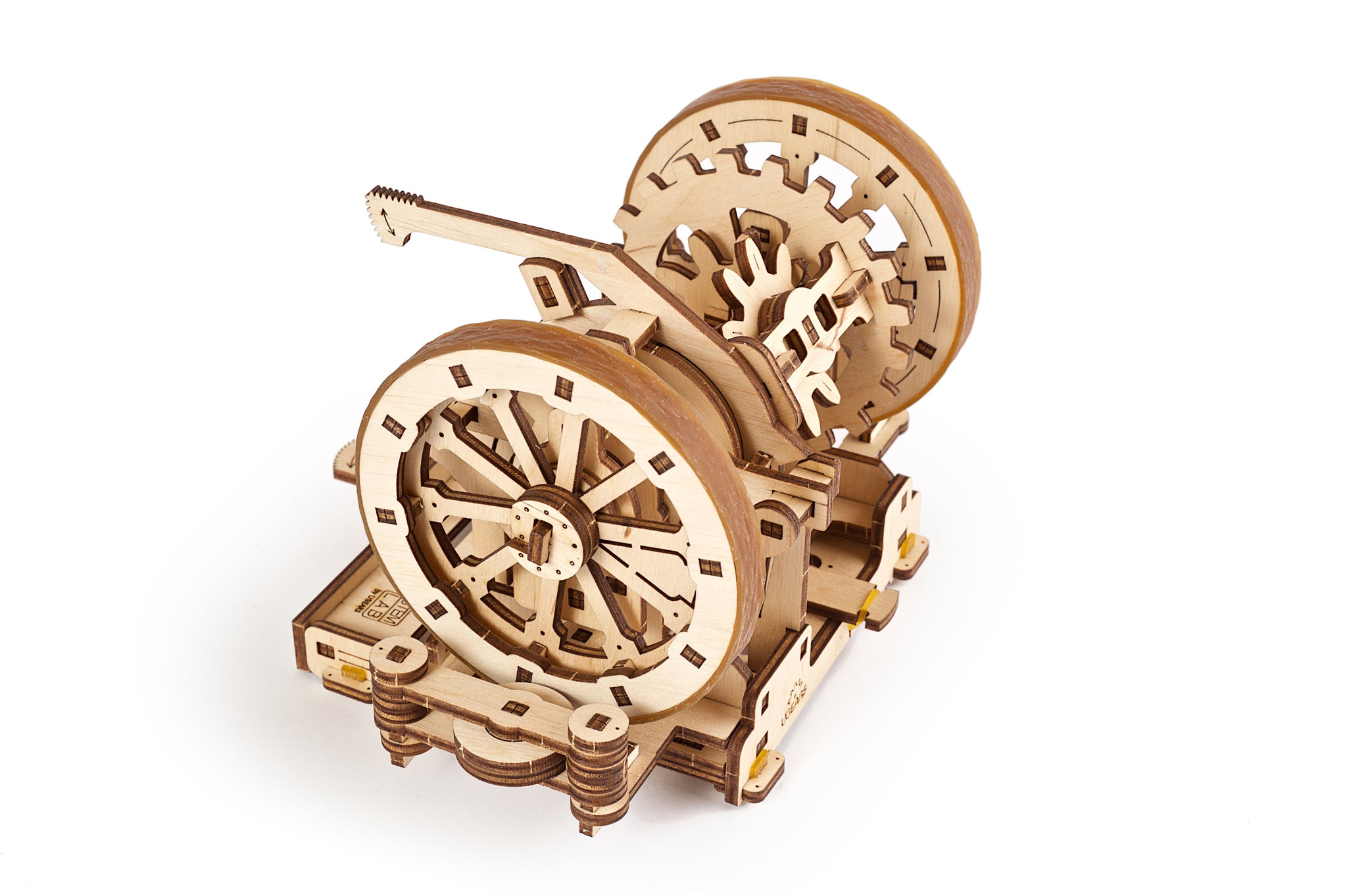

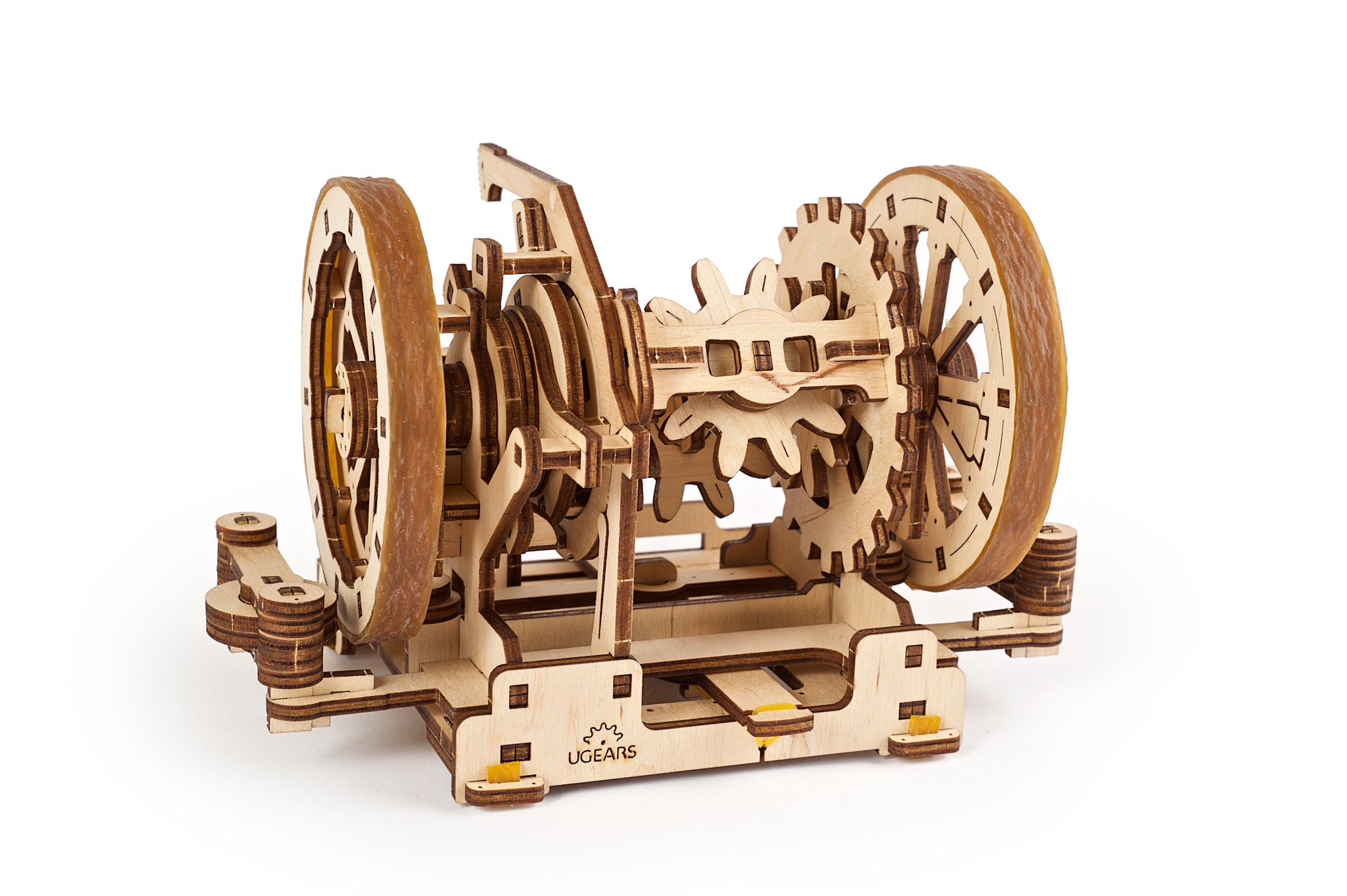

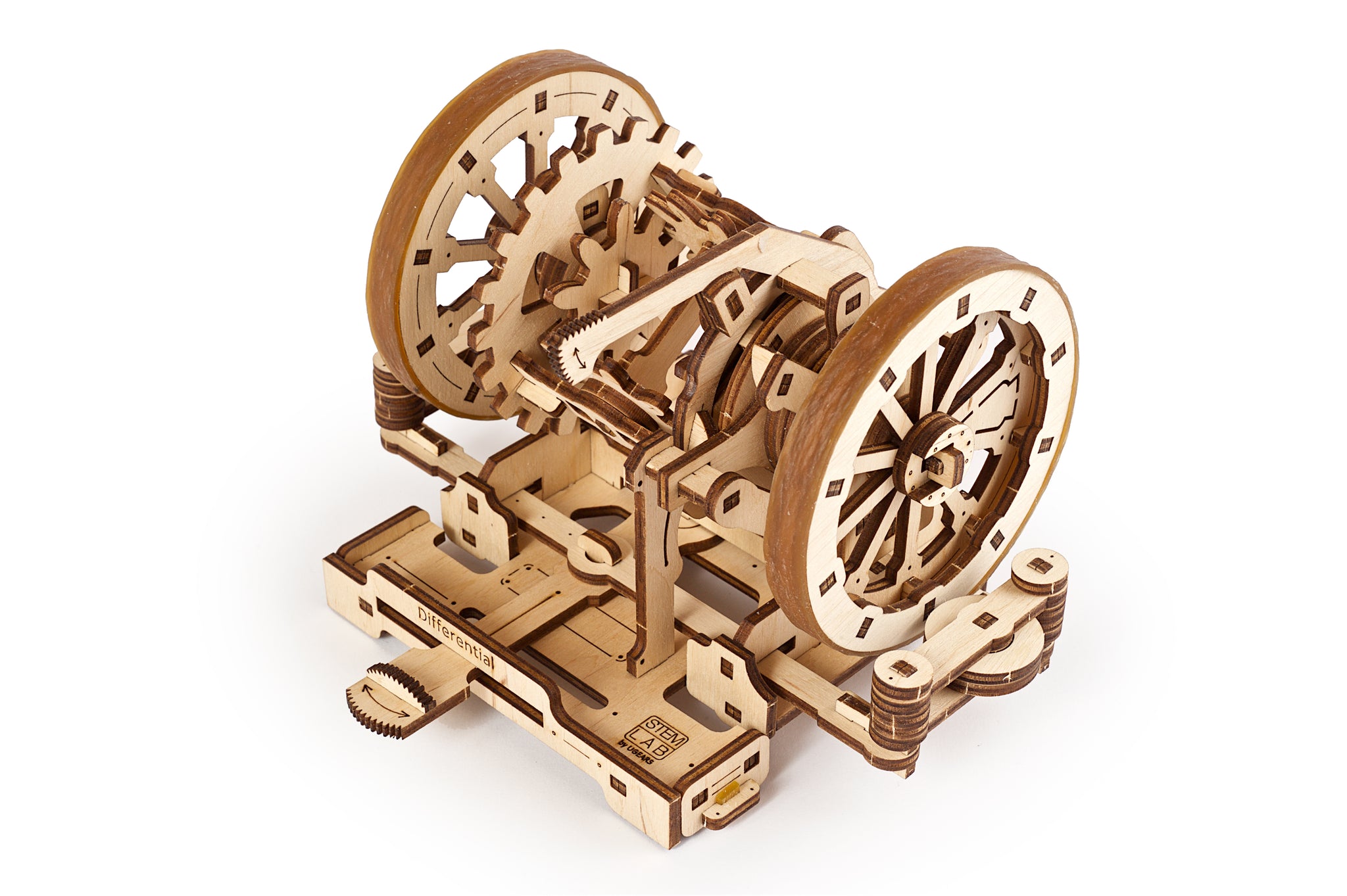

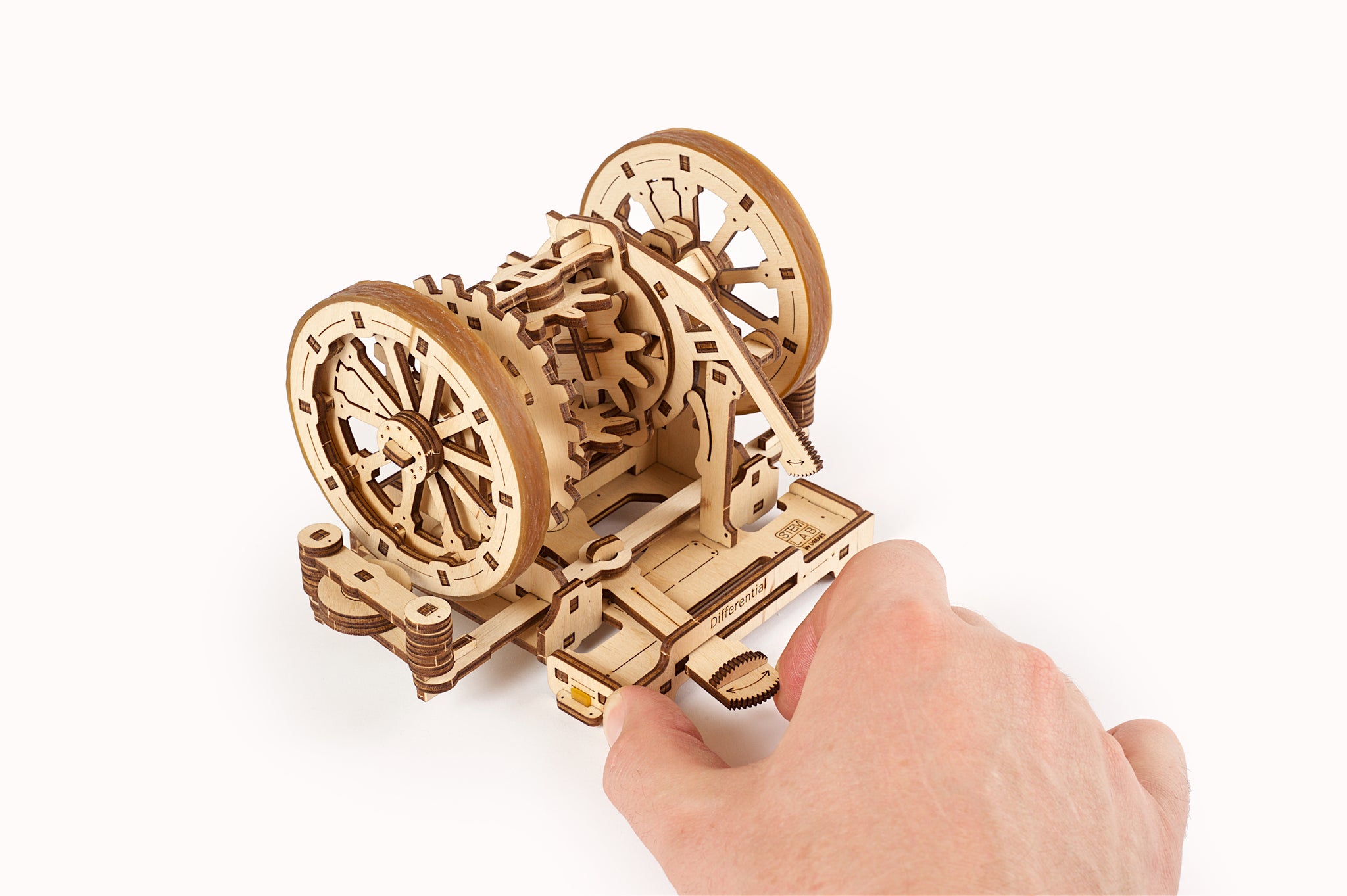

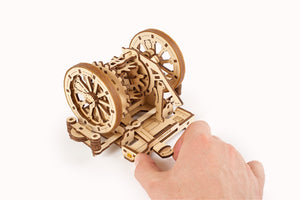

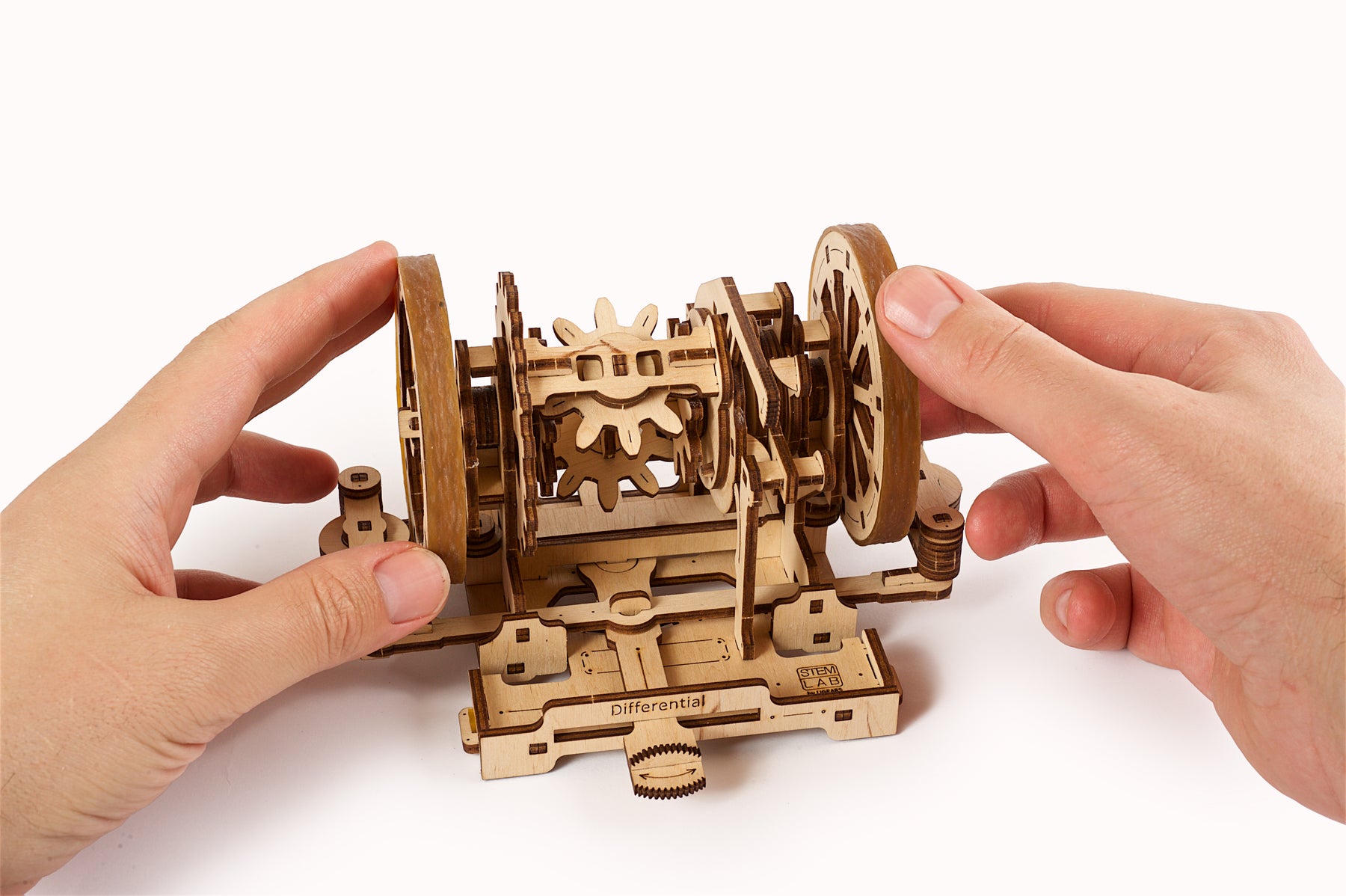

The differential is a stylized construction model and interactive study guide to the mechanism, which is used to learn its fundamentals and working principles. The differential was developed to ensure that the drive wheels sitting on the same axle turn at different speeds and cover different distances at the same time. This mechanism enables the car to take turns without the wheels slipping, prevents the wheels from slipping, reduces tire wear and makes it easier for the driver to get in and out. After youthe differential assembled, you can unlock it by pushing the lever up in position 1 and setting both wheels in motion by turning the drive wheel or the wheel. The control lever regulates the smooth locking of the left and right wheels independently of each other by turning to the left or right. In the "down" position of the lever, both wheels are connected to one another in a rigid coupling and can either rotate together, driven by the drive wheel or one wheel, or at the same time block by the wheel's lever.ades).
