Variator
STEM & engineering
Variator
Learning model of a continuously variable transmission – shows how the gear ratio changes.
incl. VAT, plus shipping
In stock
- Shipped from Germany
- Delivery within Germany in 1–3 working days
- Free spare parts
About the model

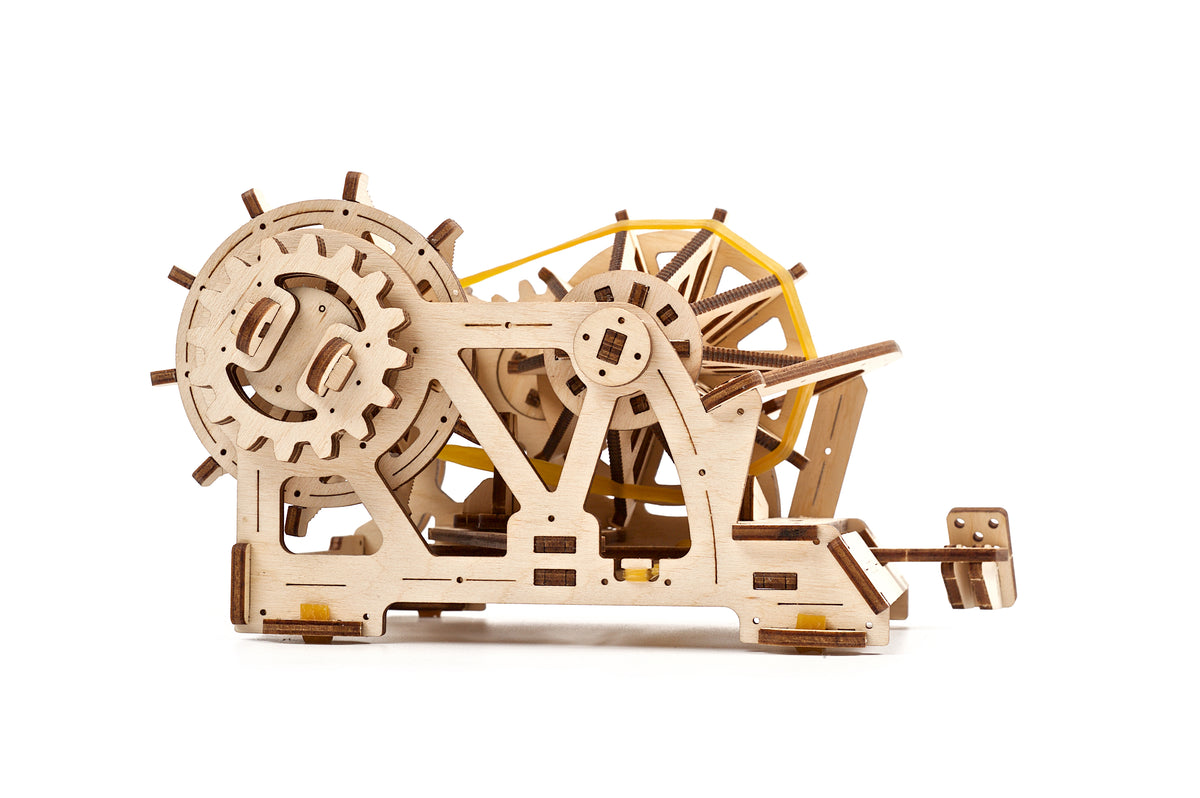

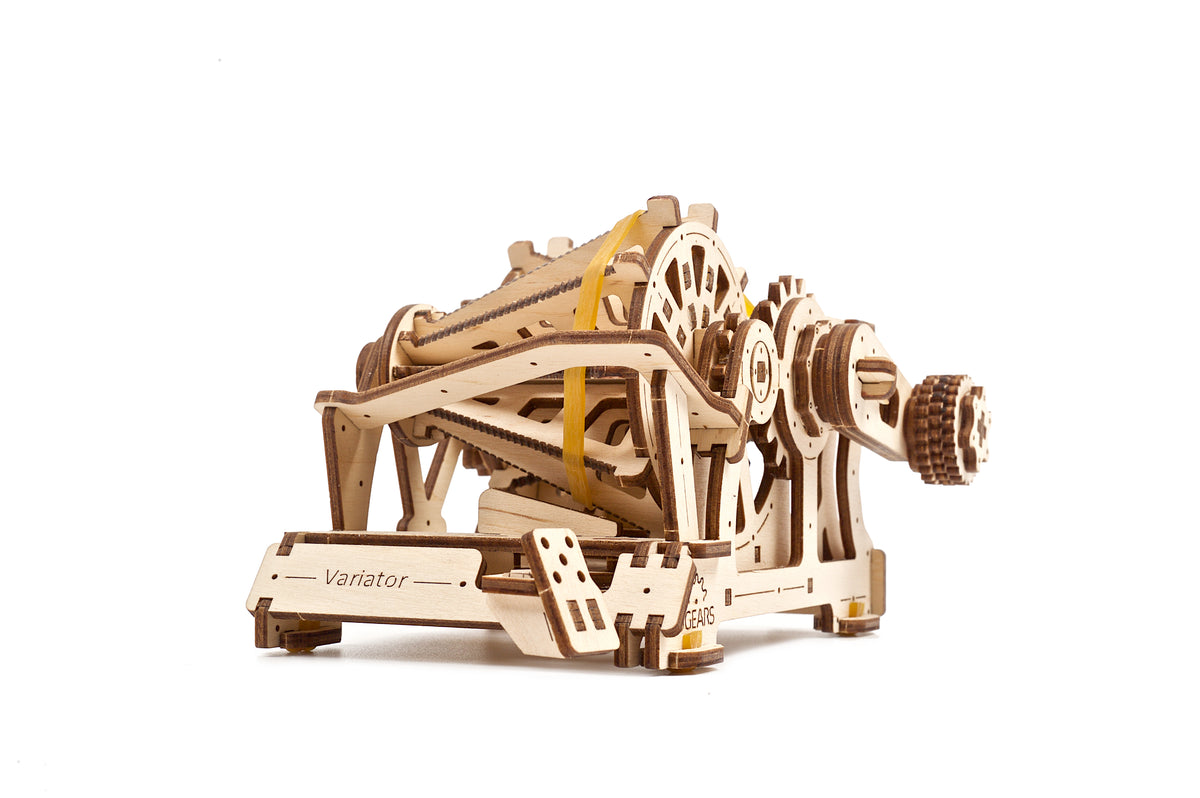

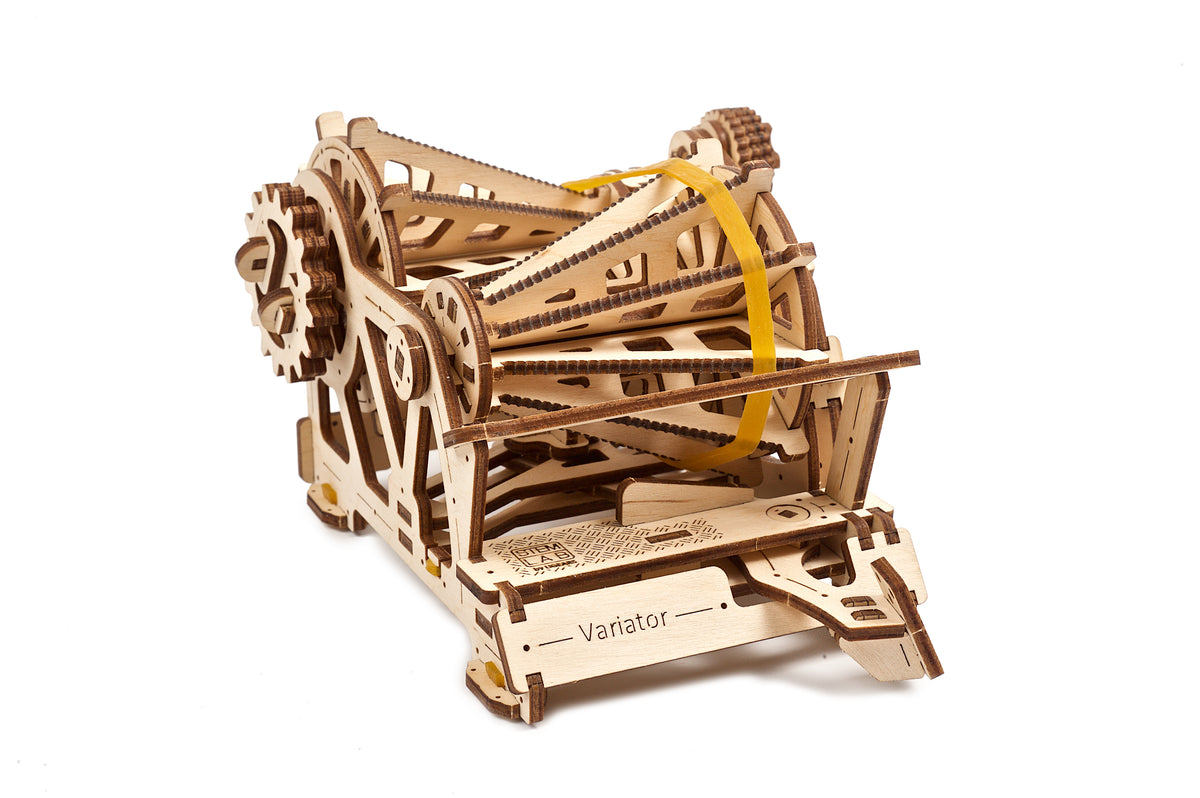

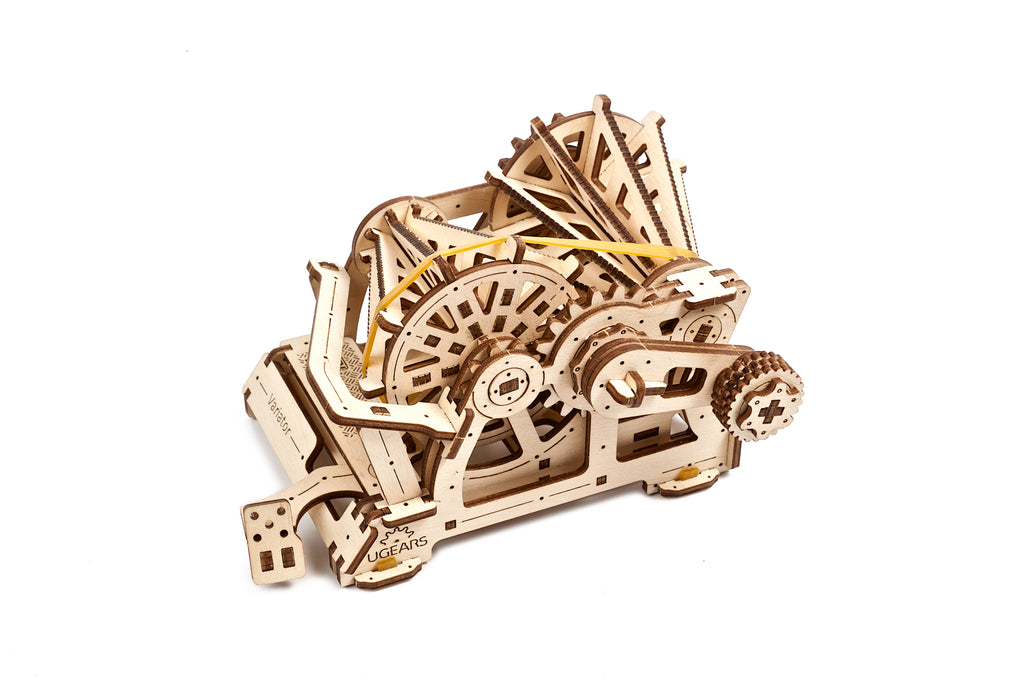

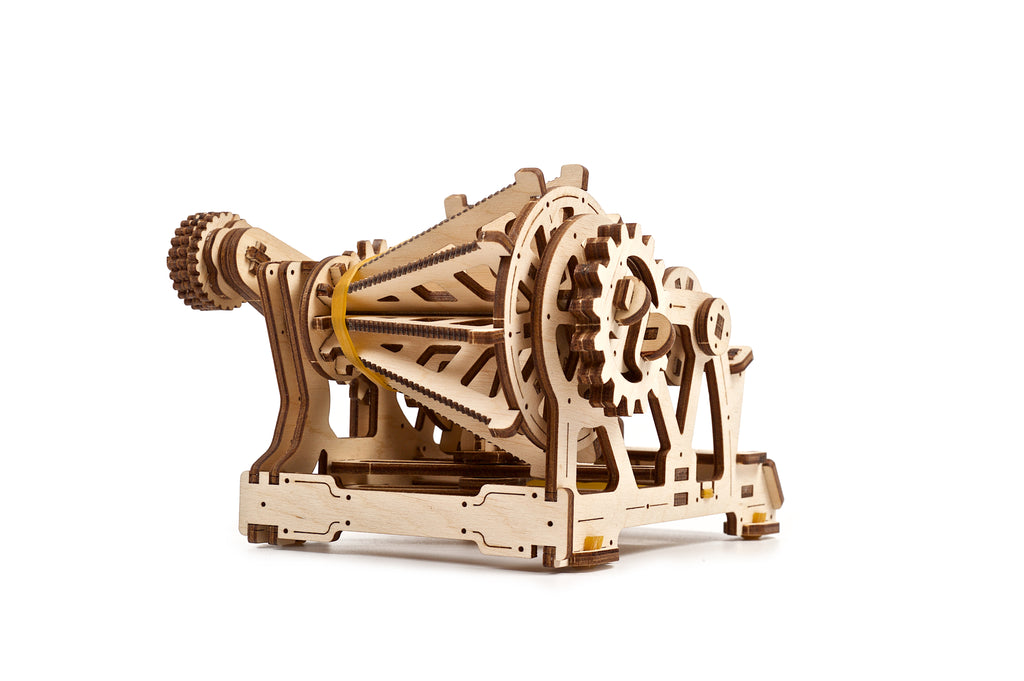

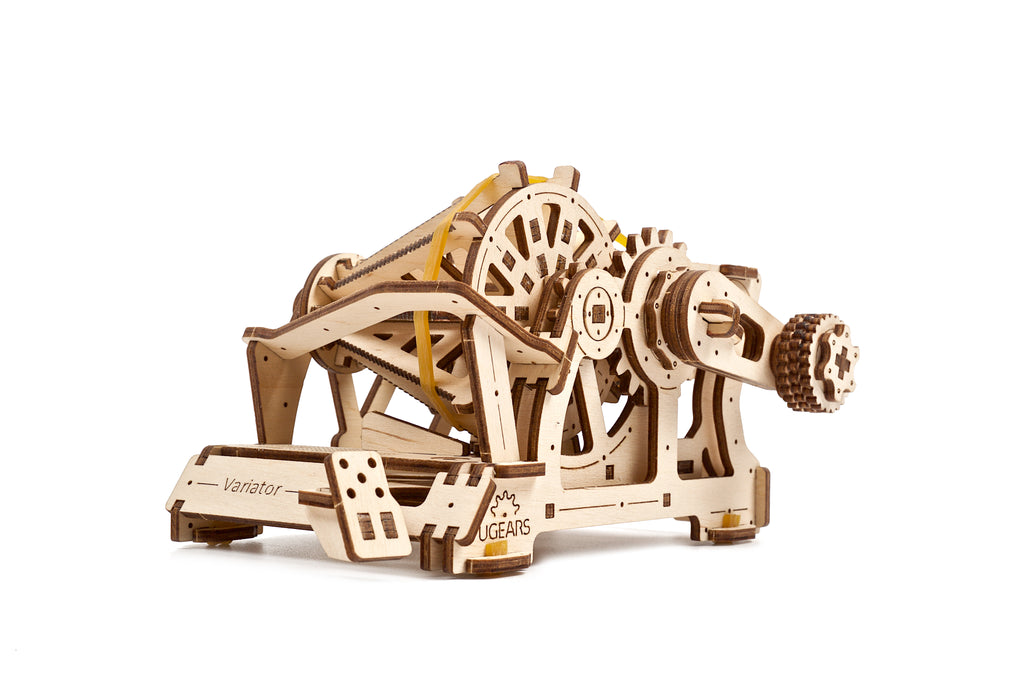

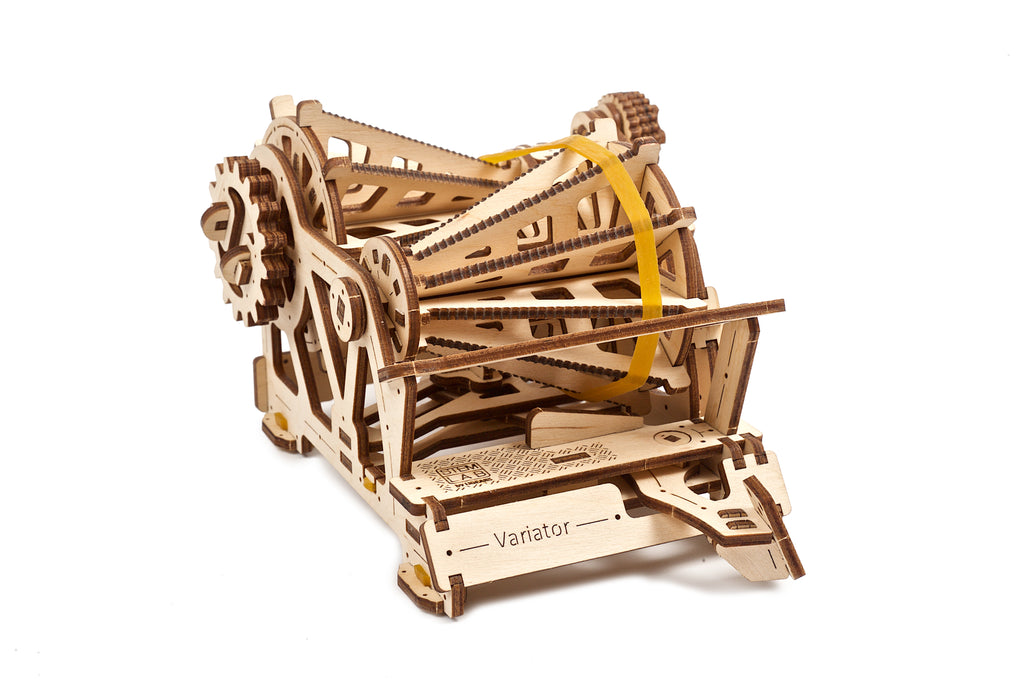

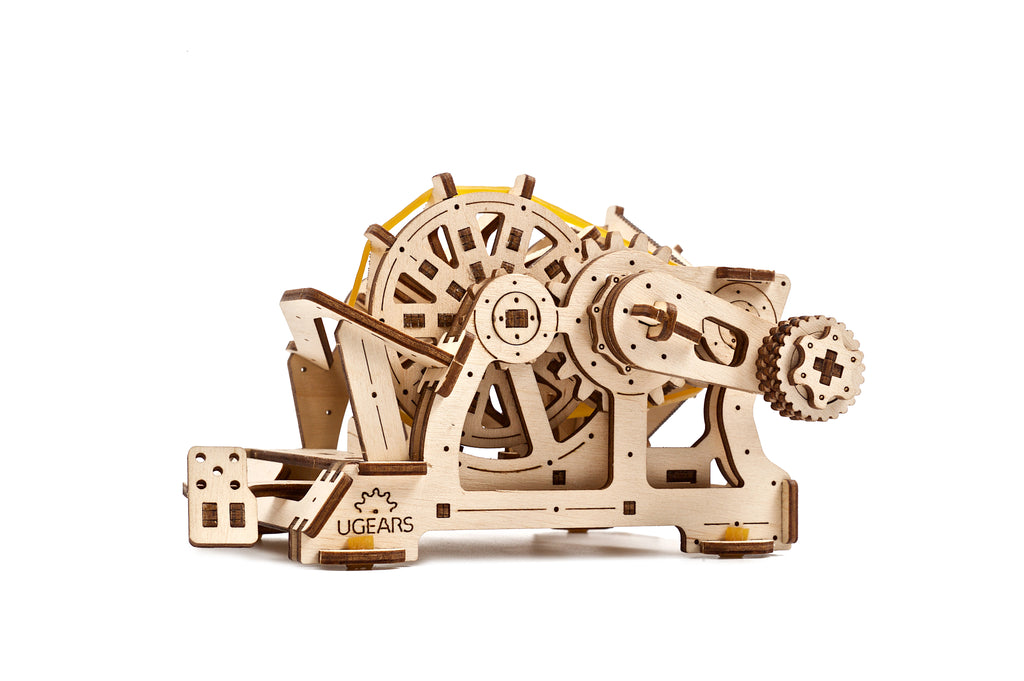

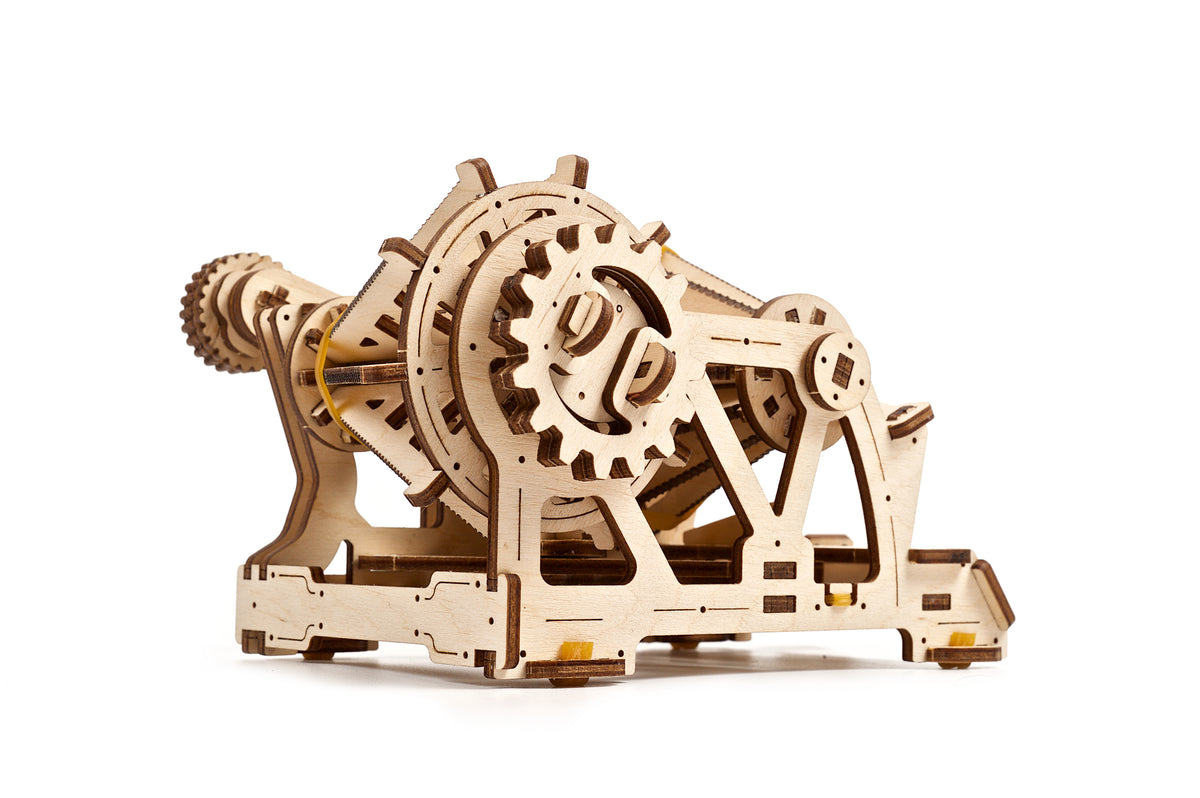

The Variator is a fully functional wooden replica of a continuously variable transmission – specifically a belt-driven friction cone CVT.
A variator transfers the engine's torque and adjusts it by changing the gear ratio. Most drivers know it as a continuously variable transmission, or CVT. It is used wherever gear ratios need to change seamlessly: in cars, motor scooters, snowmobiles, conveyors and metal-cutting machines.

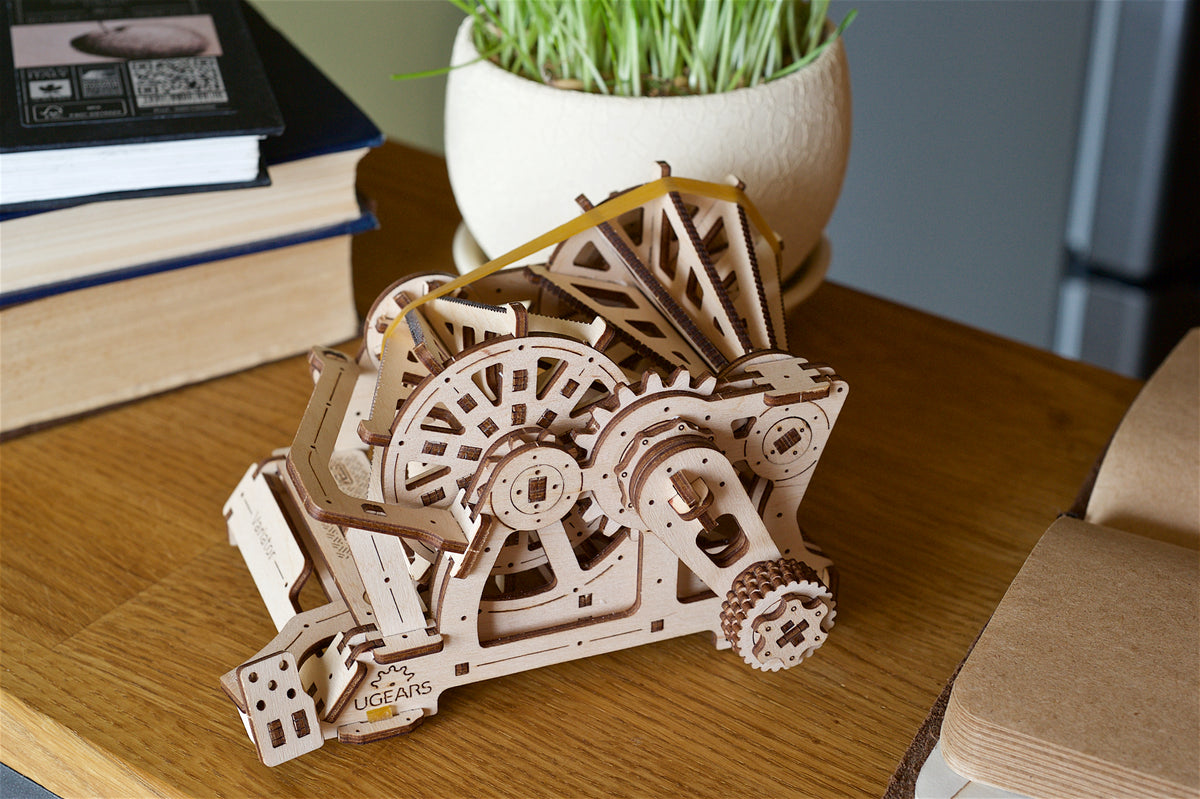

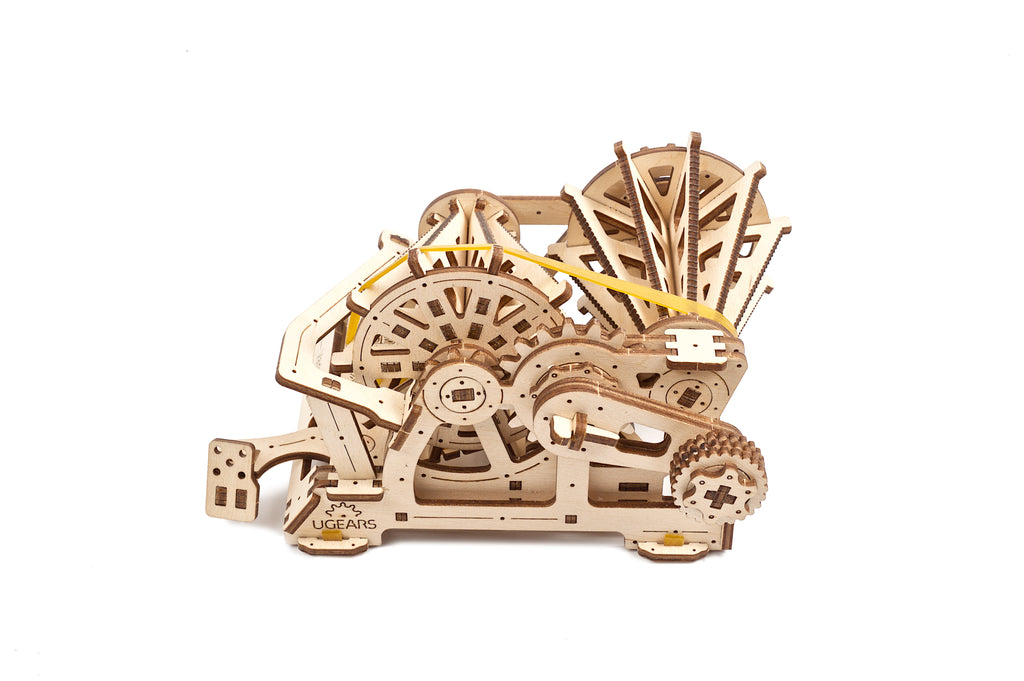

On the model, you drive the belt by hand via the reducer, and it transfers the rotation to the driven cone pulleys. Use the transmission fork to change gears and watch the driven cone pulley speed up or slow down while the drive pulley keeps the same speed. The open design lets you follow the whole process.
A project for an afternoon – 104 parts, about 4 hours, recommended from age 8.
Key features:
- Hand drive via a reducer
- Belt transfers rotation to cone pulleys
- Transmission fork changes the ratio
- Driven pulley speeds up or slows down, drive pulley stays constant
- Open design: every step in view
A QR code takes you to the study guide with working principles, formulas and assignments.
Technical details
- Item number
- 70147
- Parts
- 104
- Build time
- approx. 4 hours
- Difficulty
- Easy
- Recommended age
- 8+ years
- Dimensions
- 16,8 × 12,8 × 10,6 cm
- Condition
- Kit
- EAN
- 4820184121188
You might also like
Frequently asked questions
Do I need glue?
No. The parts slot together.
How long does it take to build?
As a guide, approx. 4 hours. How fast it actually goes depends on your pace and your breaks.
What if a part breaks?
Tell us which model and which part number are affected. Spare parts are free. They are sent by the manufacturer from within the EU, with no customs fees.
Variator
104 parts · approx. 4 hours · Easy · 8+ years
Shipped from Germany · Delivery within Germany in 1–3 working days · Free spare parts
€22,90
